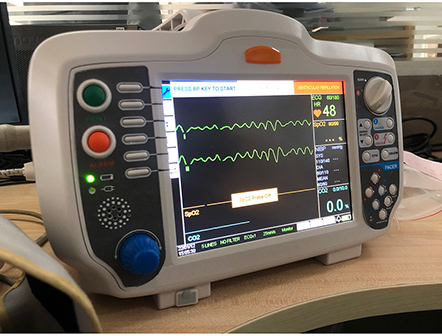

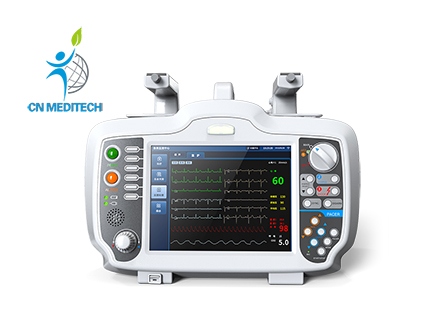

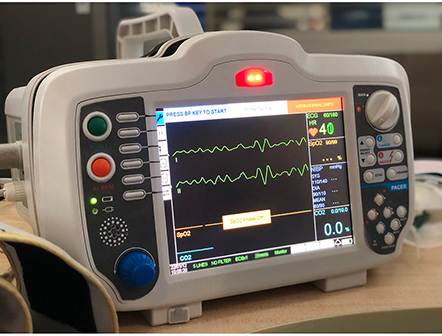

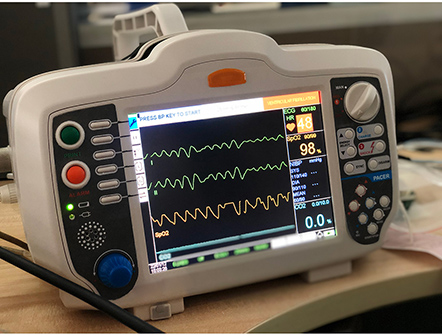

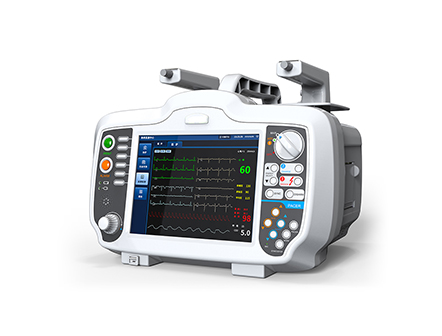

Automated Portable Electricity Biphasic Defibrillator
Model:CNME011307
|
Screen Type | High-resolution display |
Screen Size | 7 inches(17.7 cm) diagonally |
|
Waveform | Biphasic |
Charge time | Less than 7 seconds with a new fully charged battery |
|
Patient Connection | 5-lead ECG cable, or 3-lead ECG cable, paddles |
SpO2 Module |
Measurement Range | 30-100%, ± 2% between 80%-90%, others ± 5% |
|
Paper | 50mm thermal |
Speed | 12.5mm/sec, 25mm/sec, 50mm/sec.User-selectable 6-second delay |
Printing Method | High-resolution, thermal array print head |
|
Type | Rechargeable, Ni-MH battery, 12V |
Operating Time | For a new, fully charged battery:60 defibrillator discharges at maximum energy, or 3 hours minimum of continuous ECG.Additional
parameters will effect operating time with different functions. |
|
AED Function | Auto analyze and charge x3 with programmable auto energy level selection, screen prompts, and voice prompts |
|
Energy Selection | Selectable at 2, 5, 7, 10, 20, 30, 50, 70,100, 150, 200, 300, 360 joules |
