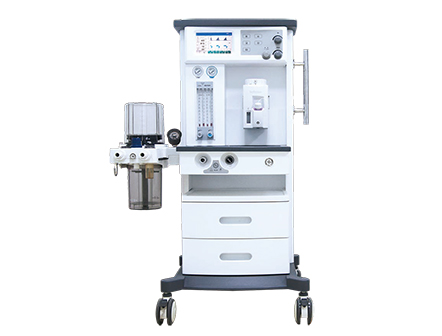

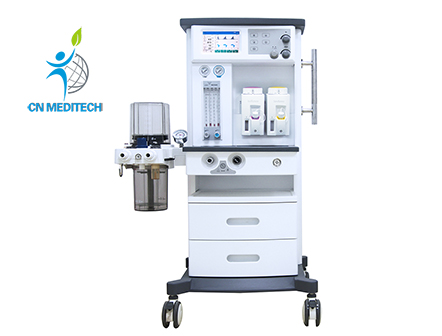

Adult Pediatric Use Medical Mobile Anesthesia Machines with Vaporizers

Model:CNME010326

Features:

1.7" TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.

2.High precision flowmeter,instantly know the fresh gas flow to your patient.

3.Integrated breathing circuit design,ensure easy operating and keep tidy.

4.Multiple working modes such as volume control and pressure limit, adapt to wide range patient. 5.Vaporizer with temperature,pressure,flow compensation and self-lock function, keep safety anytime.

6.Multiple parameters monitoring interface,make every parameter clear, let users know the patient conditions in all aspects.

7.Pressure-time,flow-time oscillogram show in real time.

8.Vital sign monitor and Anesthetic gas monitor are optional.

9.ACGO and fast oxygen supply-Emergency use and revival after opertation.

Specifications:

Anesthesia Machine Parameter
Ventilation mode	IPPV, A/C, SIMV, SIGH, MANUAL
Ventilator Parameter Range
Flowmeter	O₂ (0~10L/min) N₂O(0～10L/min)
Rapid oxygen supply	25 L/min～75L/min
Tidal volume(Vt)	0,20mL~1500 mL
MV	≥18L/min
Frequence(Freq)	1/min～100 /min
I:E	2:1(1:0.5)～1:6
PEEP	0 cmH₂O～30 cmH₂O
Pressure triggering sensitivity (PTr)	-20 cmH₂O~20 cmH₂O (Based on PEEP:-20 cmH₂O~0 cmH₂O)
Flow trigger sensitivity(FTr)	0.5 L/min~30 L/min
SIGH	0 (off)1/100~5/100
Apnea ventilation	OFF,5s~60s
Pressure limit	20 cmH₂O~100 cmH₂O
Oscillogram
P-T	pressure-time
F-T	flow-time
