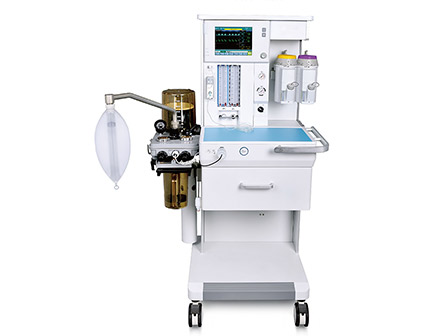

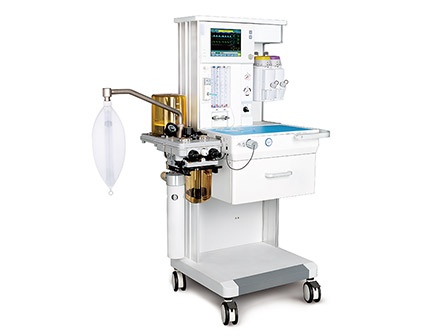

Model:CNME010304
Features:
Touch control screen design, simple user interface for fast operation
Speed startup, self check, automatic leakage test, CO2 by-pass, provide you more perfect workflow and distinctive clinical operation experience
From appearance design, operation system to AGSS, high temperature sterilization, anesthesia machine provides state-o-the-art therapy solution
1500ml ascending bellows, one bellows and one circuit for all patients
Integrated breathing circuit system, built-in flow sensors
Anesthetic gas and CO2 measurement optional, modular design
Rail at each side and the top shelf feature good Patient monitoring and other equipments installation
Technical Specifications:
| Dimensions | 773.5mm* 1380mm*598mm |
| Power supply | 100-240V |
| Screen | 10.4" color TFT LCD touch screen |
| Back up battery | 150min |
| Tidal Volume | 15-1500ml(VCV) |
| Ventilator | Pneumatic driven and electronic control |
| Inspiratory flow range | 1- 100L/min |
| Oxygen flush | 25-75L/min |
| Leakage | <75m/min |
| CO2 canister | 1.5L |
| Pipeline Gas supply | O2; Air |
| Position of vaporizers | 2 |
| Vaporizer mounting system | Selectatec, interlock |
| Flowmeter | 4 channel mechanical flow meter |
| Electronic PEEP | Standard |
| Barke | Individual braking system |
| Ventilation modes | PCV, VCV, SIMWVC, SIMV-PC, PSV |
| Monitor parameters | Tidal volume, O2 concentration, airway pressure, breathing frequency, minute volume, PEEP |
| Alarm | Airway pressure, Oxygen failure alarm, Apnea alarm, Breathing rate alarm, O2 concentration |
| ACGO | Optional |
| CO2 monitor module | Optional |
| AG monitor module | Optional |
| AGSS | Optional |
| Breathing system( bypass) | Optional |
