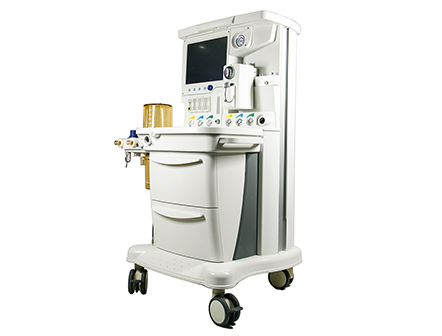

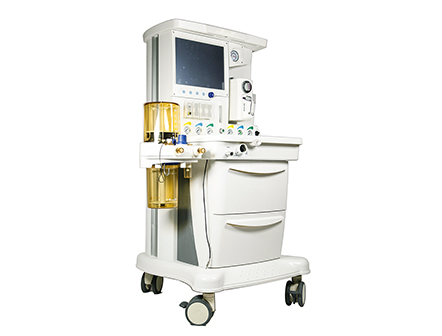

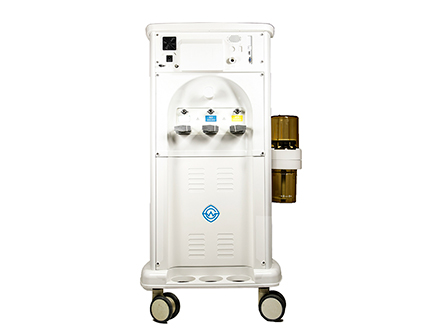

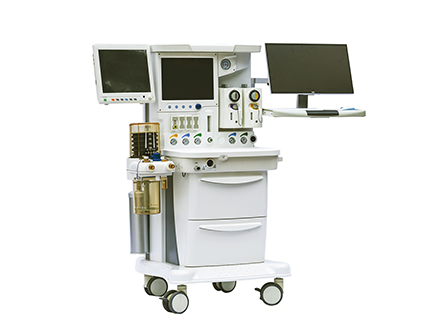

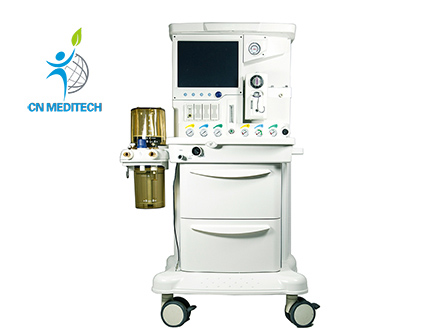

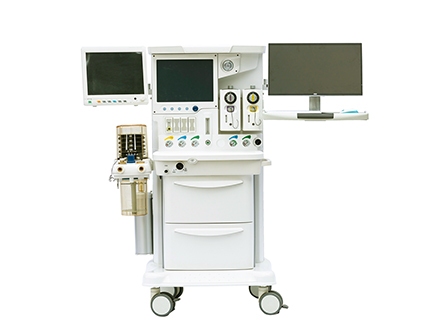

15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
  • 15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers
15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers

Get Quotes

Download Full Catalogue

15 Inch TFT Touch Screen Anesthesia Machine Systems with 2 Vaporizers

Model:CNME010314


Specifications:

Ventilator specifications
Modes of VentilationVCV,SIM-V,SIMV-P,MANUAL,A/C,PCV,PSV,STAND-BY,PA-VC
Ventilator parameter
Working typeElectronically controlled, pneumatic driven
Tidal Volume range10-1500ml
Pressure range5-60 cmH2O
Respiration Rate Range1-100bpm (1-40bpm under SIMV)
I:E Range4:1-1:8
Ptrigger Range-20-20 cmH2O(based on PEEP)
Minute volume range>18L/Min
SIGH range0-5/100
System Standard
Hypoxic guard systemN2O cut-off valve, O2 concentration >25%
Safety valve<12.5kPa
Fresh gas compensation25-75L/min
Volume of CO2 absorber2L
Flow meter

E-flowmeter
0.1-15L/min O2,0.1-15L/min N2O,0.1-15L/min air
Vaporizer2 Selectetac,maximum 2 mounts(lsoflurane/Enflurane/Sevoflurane/Halothane)
PEEP
TypeIntegrated, Electronic control
RangeOFF,3-30cmH2O
