ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
  • ICU Trolley General Anesthesia Machine
ICU Trolley General Anesthesia MachineICU Trolley General Anesthesia MachineICU Trolley General Anesthesia MachineICU Trolley General Anesthesia MachineICU Trolley General Anesthesia MachineICU Trolley General Anesthesia Machine

Get Quotes

Download Full Catalogue

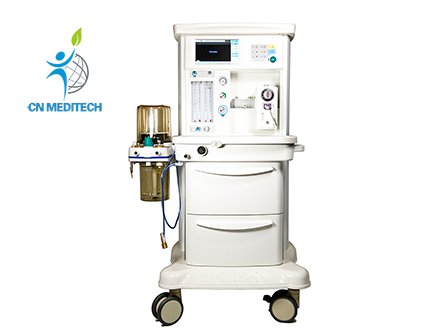

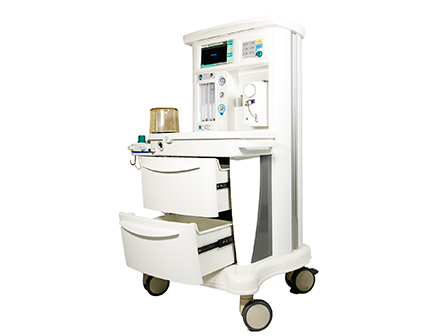

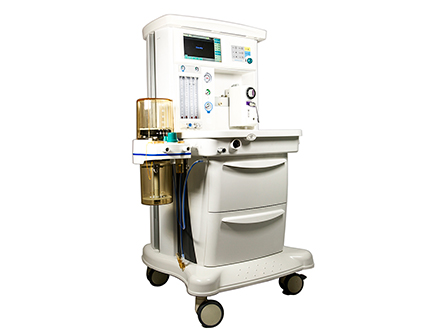

ICU Trolley General Anesthesia Machine

Model:CNME010319


Features:

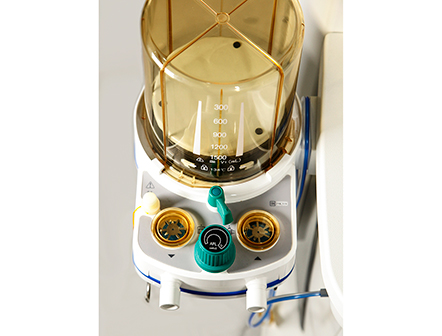

Integrated breathing circuit with APL valve,excellent tightness.
Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
Applied with 1 high-precision vaporizers. (Selectatec).

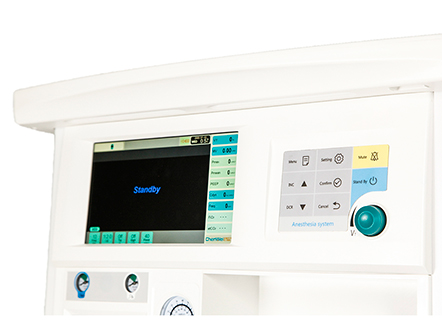

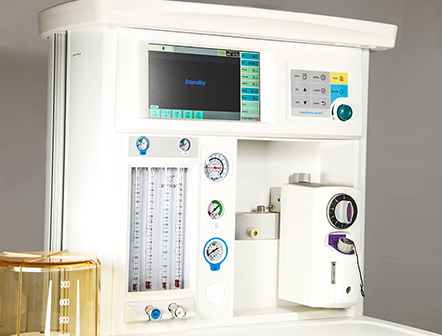

10.1 inch screen with no dead space.
O2,N2O,Air(optional)


Specifications:

Ventilator specifications
Modes of VentilationVCV,SIMV,MANUAL,STAND-BY
Ventilator parameter
Working typeElectronic control, pneumatic driven
Tidal Volume range20-1500ml
Pressure range5-60 cmH2O
Respiration Rate Range1-100bpm (1-40bpm under SIMV)
 I:E Range  4:1-1:8
 Ptrigger Range  -20-20 cmH2O(based on PEEP)
 Minute volume range  >18L/Min
 SIGH range  0-5/100
 System Standard
 Hypoxic guard system  N2O cut-off valve, O2 concentration >25%
 Safety valve  <12.5kPa
 Fresh gas compensation  25-75L/min
 Volume of CO2 absorber  2L
 Flow meter  4 tubes, cascade 0-15L/min O2,0-15L/min N2O,0-15L/min Air(Optional)
 Vaporizer  1 Selectetac, maximum 2 mounts(lsoflurane/Enflurane/Sevoflurane/Halothane)
