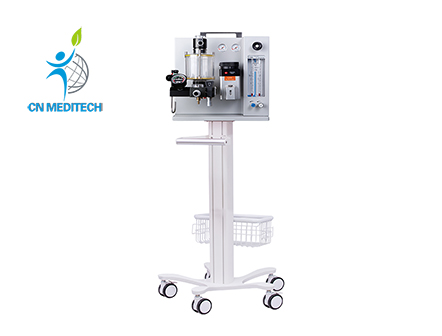

Portable Emergency Anesthesia Machine
Model:CNME0103S2
Specifications:
Physical and Environmental Specification |
Dimension | L450×W405×H330mm |
Weight | 22Kg |
Storage temperature | -22℃ ~ +55℃ |
Working temperature | +10℃ ~ +40℃ |
Storage humidity | ≤93℃ |
|
Agent type | Sevoflurane; Halothane;Isoflurane |
Flow range | 0.2~15L/min |
Concentration | 0~5.0% (Sevoflurane 0-8%) |
Work temperature | 15~35℃ |
|
Mode | Semi-open, semi-closed or closed system |
Gas supply | O2/N2O 0.28Mpa~0.6Mpa |
Flow meter | O2/N2O two-tube flowmeter,0~ 10 L/min(With interlock protection devices ensuring the oxygen concentration>21%) |
O2 Flush | 25 to 75 L/min |
O2 deficiency alarm | Audible alarm for at least 7 seconds |
APL valve | ≤6KPa |
