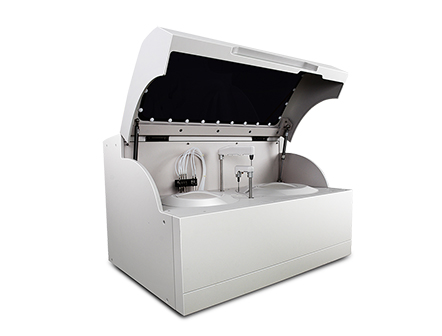

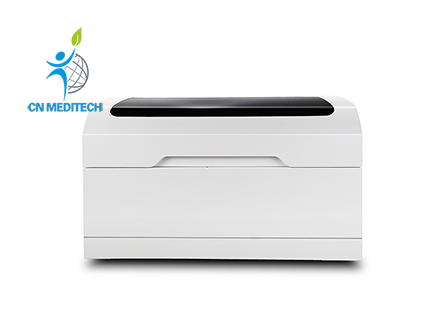

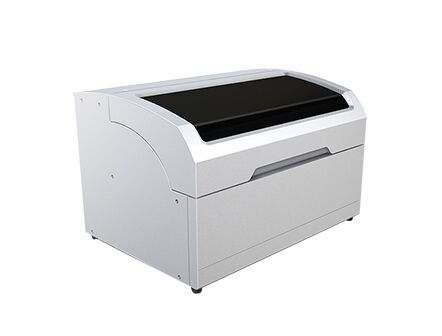

Fast Diagnosis Auto Biochemistry Analyzer

Model: CNME030402B

Description:

CNME030402B is one of the best bench-topchemistry analyzers, which is flexible for small to medium sized laboratories.By utilizing latest innovations, it's a perfect combination of small footprint and outstanding performance.

Features:

Random access, fully automated, STAT

Constant 240T/H, up to 300T/H

60 reagent positions and 60 sample positions

81 reaction positions

Auto washing station

Optionals:

Sample barcode scanner

Specifications:

Throughput	Constant 240T/H, up to 300T/H
Reagent tray	60 reagent positions
Sample tray	60 sample positions
Reaction cuvette	81 resusable cuvettes
Wavelength	8 wavelengths:340nm,405nm,450nm,510nm,546nm, 578nm,630nm,670nm
Dimension	880mm (W) x650mm (D) x570mm (H)
Weight	90kg
Power supply	AC 100~240V, 50/60Hz, ≤ 450VA
Packing size	103.872.882.5cm
GW	136kg

Advantages:

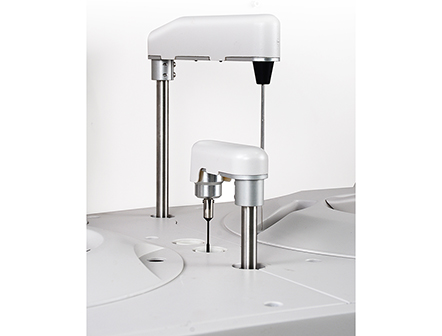

Sampling system
One probe and one mixer bar
Auto depth adjustment
Liquid level detection
Collision protection

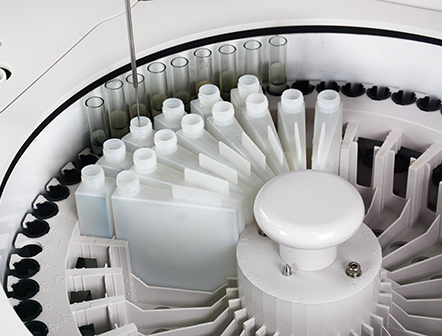

Sample & reagent disk
24-hour reagent refrigeration
60 reagent positions
60 sample positions with STAT priority

Reaction system
81 reaction cuvettes
Constant solid heating
Reaction temperature 37±0.1ºC
Minimum reaction volume 150 μl
Auto washing station

Real-time monitoring
Reagent inventory monitoring
Realtime water blank test
Realtime dirty cuvette detection
