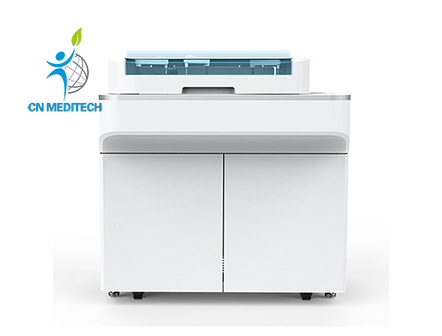

Medical Blood Analysis Auto Chemistry Analyzer

Model: CNME030401A


Features:

1.The on-board hemolysis function
NGSP certification of whole blood latex-agglutination method on analyzer
Whole blood testing function for HbA1c to avoid artificial error
Not necessary for centrifugation
Automatically hemolysis function,easy operation and standardization for HbAtc test


2.High capacity

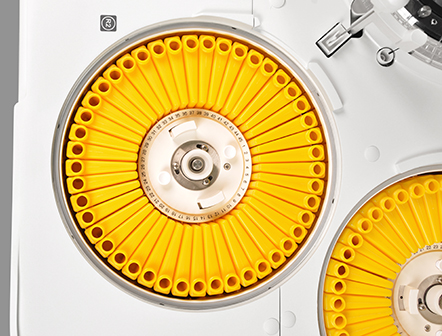

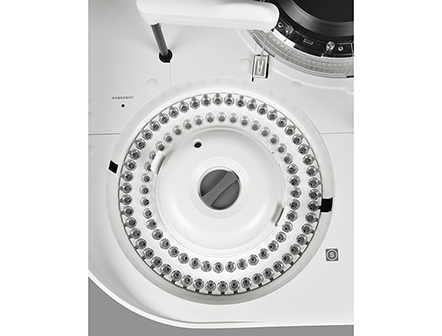

Up to 115 elastic design sample positions,suitable for different size of tubes
112 oblique design reagent positions for full use reagent to save reagent and cost


3.Accurate result
340-800nm 12 wavelengths
Digital liquid level detection high sensitivity avoids bubbles'interference
Reagent inventory management, automatically calculate remaining volume and remaining number


4.Robust function
Conditioned reflex function
The linear extension function of enzyme greatly extends the report range, and effectively reduce the risk of reporting false negative results for high-concentration enzyme samples, as well as the retest frequency.


5.Excellent performance
Automatically cuvette checkup ensure the cuvette clean
Collision Protection


6.Save time and cost
Optical diameter 5mm
Minimum reaction volume 120μL



Specifications:

Equipment typeFull automatic, discrete, STAT priority
Throughput400T/H for photometry tests, 800 T/H with ISE
Sample position115 sample positions
Reagent volume20μL~350μL, 1μL stepping
Reagent positionDouble reagent disk up to 112 positions
Reaction cuvette120 positions optical plastic cuvettes
Wavelength340nm~800nm
Volume1060mm×790mm×1150mm(L×W×H)
Weight300Kg
Power supplyVoltage AC 220±22V,50Hz±1Hz,power 2000VA
Packing size1.8m³
GW367kg
