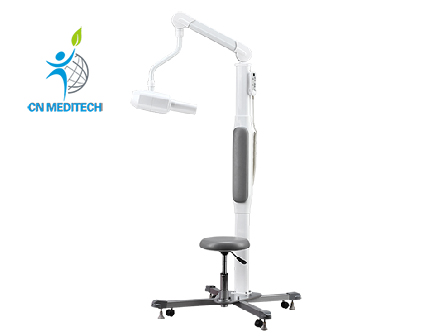

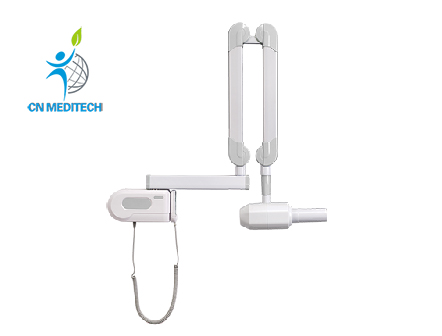

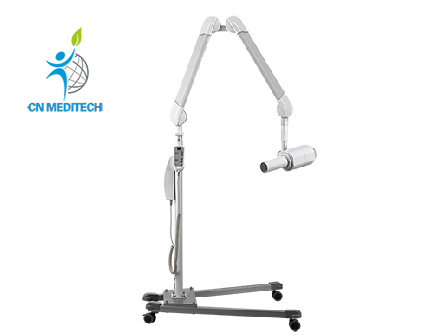

Model:CNME140201A/CNME140202/CNME140203A
Features:
1.Using the international advanced technology,efficient integrated design,high efficiency,low radiation.
2.Developing in light room, image in one minute, the doctor can diagnose conveniently for maximum.
3.Pneumatic up-down seat, more convenient and more comfortable.

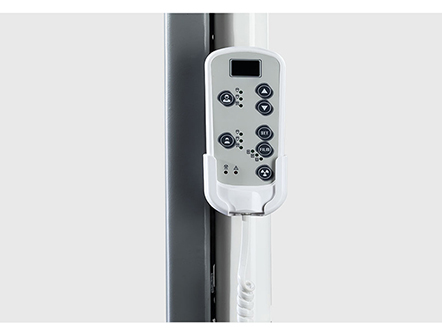

4.Light touched button, controlled with microcomputer, only press one button to select the exposure parameter, fast and accurately.
5.Micro focus technology,much more clear image and accurate diagnosis.
Specifications:
Item | CNME140201A | CNME140202 | CNME140203A |
Power Voltage | AC220±10% | ||
Frequency | 50/60Hz | ||
Rated High Voltage | 70KV | ||
Focus | 0.8mm | 0.4mm | 0.8mm |
Tube-Head Current | 7mA±15% | 8mA | 8mA |
Radiation Leakage | < 0.07mGy/h | ≤ 0.025mGy/h | ≤ 0.002Mg/h at 1m |
Exposure Time | 0.06-2.00s | 0.02-4s | 0.2-4s |
Packing Size | 180*28*28cm | Carton 1:144*50*27cm Carton 2:80*70*15cm | 144*50*27cm |
Gross Weight | 50kg | 40kg+15kg | 55kg |
