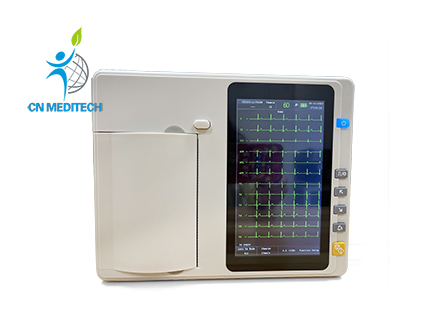

Model:CNME0112C2
Features:
7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design

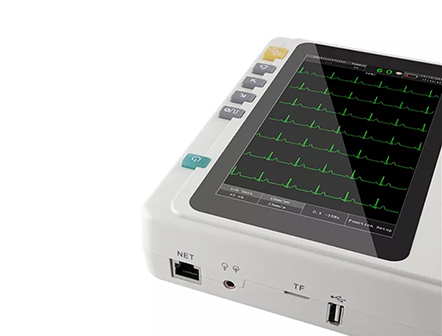

Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Specifications:
Lead | Standard 12 leads |
Acquisition Mode | Simultaneous 12 leads acquisition |
Measurement Range | ±5mVpp |
Input circuit | Floating;Protection circuit against Defibrillator effect |
Input circuit current | <0.05μA |
CMRR | >100dB |
Patient leak current | <10μA(220V-240V) |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV,5 mm/mV,10 mm/mV,20 mm/mV(error:±5%) |
Anti-baseline Drift | Automatic |
Time constant | ≥3.2s |
Noise level | <15μVp-p |
Paper speed | 12.5 mm/s,25 mm/s,50 mm/s |

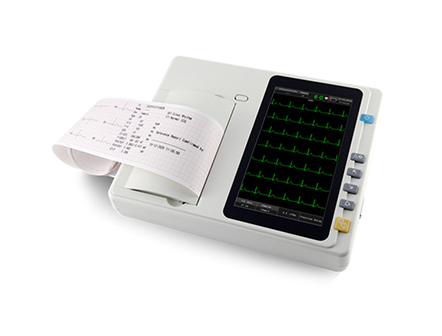

Recording mode | Thermal printing system |
Paper specification | Roll 110mmx20M |
Safety Standard | IEC I/CF |
Sample Rate | Normal: 1000sps/channel |
Power supply | AC:100~240V,50/60Hz,30VA~100VA
DC:14.8V/2200mAh, built-in Iithium battery |
