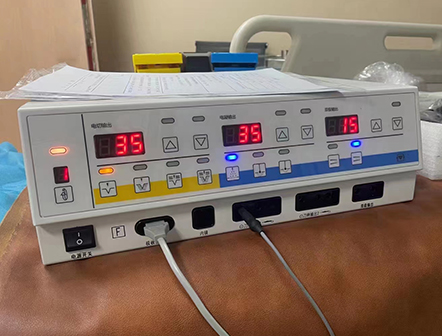

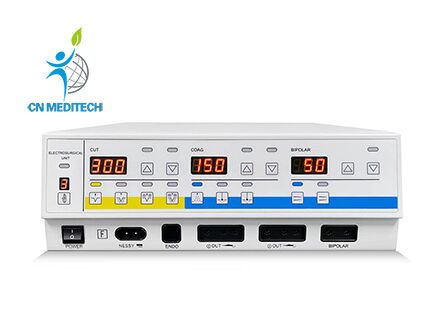

9 Working Modes Cautery Machine

Model:CNME011117

Applicable to:

Ggeneral sugery, thoracic surgery, orthopedic; obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery,ENT surgery and etc.

Operation video:

https://youtu.be/w1wZHd9-Wqc

*9 working modes

*Main Frequency: 330-460 KHz

*Monopolar Cut(Max. output power:400W)

*Monopolar Coag(Max. output power:120W)

*Bipolar Coag(Max. output power:70W)

Endoscope Interface:

This device has micro interface for endoscope,adopts independent intelligent control technology,which can adjust the working mode for this device to be most matching endoscope for minimally invasive surgery.

*Remote fault diagnosis function.

*Full-function power automatic compensation.

*Automatic monitoring function and mistake indication function.

*High definition large LED indication, with audio & visual indication.

*Standard endoscopic interface comply with any brand endoscopies.

*Power-off protection circuit, which remembers last time output setting value.

*Auto bipolar function has 1002 automatic stop function and does not adhere.

*Can connect with two independent hand switchees for for simultaneous operation by two doctors.

*Underwater cut function, suitable for use with argon system, endoscope, uteroscope etc including organic cut in rich fat area.

*Nine working modes, Monopolar output controlled by hand switch or foot switch;bipolar output controlled by foot switch.

*Independent output interface, ensured that only tche opened interface can gives output,other closed interface has no output, which is more safe.

*With high performance neutral electrode contact inspection system,system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

*Optional hand switch controlled power output (increase or decrease) function.
