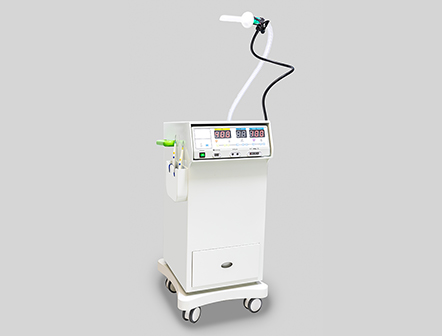

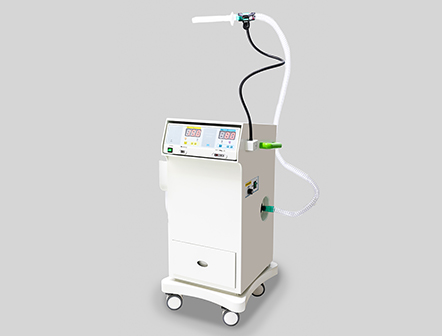

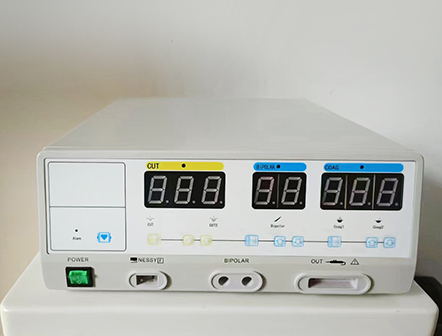

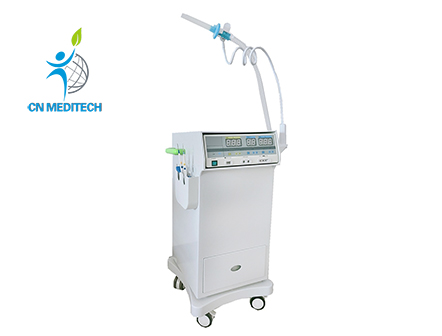

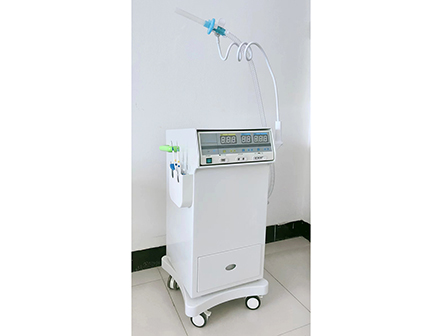

Medical Gynecological Surgery Leep Knife Machine Electrosurgical Generator

Model:CNME011112B-leep

Applicable to:

obstetrics and gynecology (cutting,hemostasis,cauliflower, cervical erosion,LEEP,all kinds of laparoscopic operations with laparoscopy,various gynecologic operations)

LEEP operation superiority:

The use of LEEP for gynecologic uterine lesions has improved the accuracy, controllability and safety of the operation.
It can be applied to the treatment of various diseases in obstetrics and gynecology (cutting, hemostasis, cauliflower, cervical erosion, LEEP, all kinds of laparoscopic operations with laparoscopy, various gynecologic operations)simplifying the procedure,reducing the cost of the operation and improving the safety of the operation.
Many kinds of knife heads are sidtable for cervical conization and vulva management, no car-bonization and no pathological changes.
Spherical electrodes can be used for hemostasis, not focus blood vessels, do not damage nearby tissues, and recover faster after operation.

Output Characteristics of Loop Electrosurgical Excision Procedure:

Working mode		Maximum Power(Watts)	Rated Load
Monopolar Cut	Cutting	300W	500Ω
Monopolar Cut	Blend cut	150W	500Ω
Monopolar Coag	Soft Coag	100W	500Ω
Monopolar Coag	Strong Coag	80W	500Ω
Bipolar Coag	Standard Coag	50W	200Ω

Technical Specifications of Loop Electrosurgical Excision Procedure:

Atmospheric pressure range:86.0-106.0 kpa
Power supply:220V+22V, 50Hz+1
Working frequency: 360-460 kHz
Rated power of equipment:880 VA+10%
Type of device:CF
The machine power consumption:≤1000VA

The technical parameters of the smoking device(Integrated with trolley):

Maximum power: 200W
Noise level: maximum 40dB
Maximum flow:0-200L/min(adjustable suction force)
Power supply voltage:110V-220V,50/60HZ
Absorption efficiency:>95%
Absorption of flow rate:200L/min

Standard packing list:

Mainframe	1 set
Smoking device	1 set
Medical cart	1 set
Electrosurgical pencil	5 pieces
Vaginal dilator	1 piece
Smoke exhaust pipe	2 pieces
Smoke filter element	1 piece
Silicone hose	1 piece
Induction loop	1 piece
Neutral electrode	10 pieces
Neutral electrode cable	1 piece
Foot switch	1 set
Bipolar tweezers with cable	1 piece
Electrode	10 pieces

Parameter comparison:

Model	CNME011112A-leep	CNME011112B-leep	CNME0111RF-1	CNME0111RF-3	CNME011105
Maximum Power	Monopolar:200W Bipolar:50W	Monopolar:200W Bipolar:50W	Monopolar:100W	Monopolar:100W Bipolar:75W	Monopolar:100W Bipolar:50W
Applicable Surgeries	Gynecological Surgery	Gynecological Surgery	Gynecology surgery, Dentistry surgery, Anorectal surgery	Plastic (Cosmetic) surgery,Otorhinolaryngology (ENT) surgery,ophthalmology surgery	Dermatology, Dentistry, Plastic surgery
Working Mode	①Pure cut，②Blend cut 1，③Blend cut 2，④Soft Coag，⑤Strong Coag,⑥Bipolar Coag	①Pure cut，②Blend cut，③Soft Coag，④Strong Coag: 80W，⑤Bipolar Coag	①Pure cut，②Blend cut，③Spray coag，④Fulguration coag，⑤Spray coag	①Pure cut，②Blend cut，③Spray coag，④Fulguration coag，⑤Spray coag，⑥ Bipolar coag.	①Pure cut，②Blend cut，③Contact Coag，④Bipolar Coag
Advantages	The smoker is designed independently and can be used with other electrosurgical units	Integrated trolley with built-in smoking device	Radiofrequency Electrosurgical Unit,Monopolar mode - 4.00MHz	Radiofrequency Electrosurgical Unit Monopolar mode - 4.00MHz. Bipolar mode - 1.71 MHz	FDA Certification
