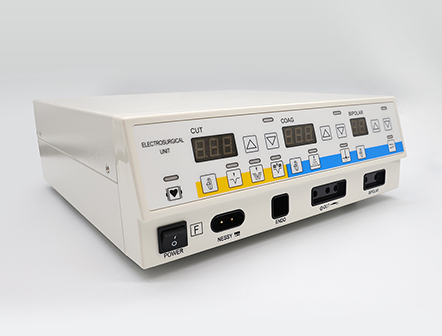

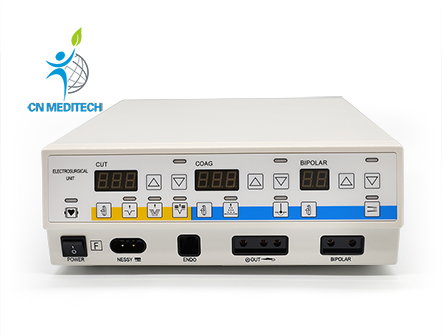

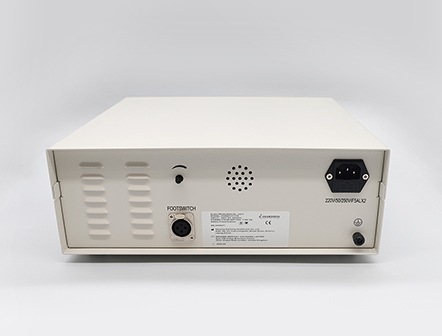

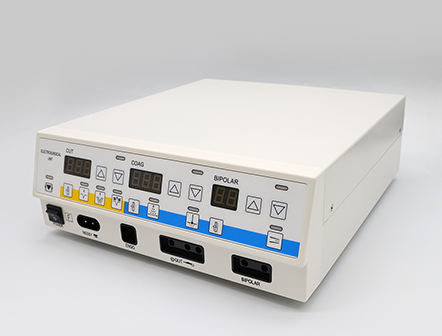

Medical Portable 6 Working Modes High Frequency Surgical Electrosurgical Unit

Model:CNME011117S

Operation video:

https://youtu.be/nwcdGNuFPo4

Applicable to:

general surgery, thoracic surgery, orthopedic; obstetrics and gynecology, urologic surgery, cerebral surgery,microsurgery,ENT surgery and etc.

Features:

1.Remote fault diagnosis function.

2.Full-function power automatic compensation.

3.Automatic monitoring function and mistake indication function.

4.High definition large LED indication, with audio & visual indication.

5.Standard endoscopic interface comply with any brand endoscopies.

6.Power-off protection circuit, which remembers last time output setting value.

7.Underwater cut function, suitable for use with argon system, endoscope, uteroscope etc including organic cut in rich fat area.

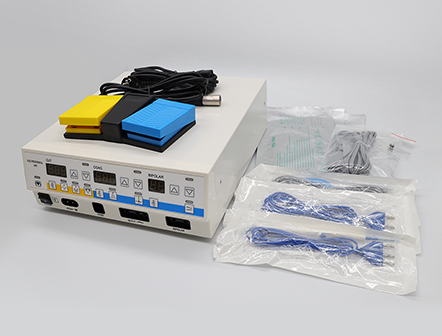

8.Six working modes, Monopolar output controlled by hand switch or foot switch; bipolar output controlled by foot switch.

9.Independent output interface, ensured that only the opened interface can gives output, other closed interface has no output,which is more safe.

10.With high performance neutral electrode contact inspection system,system will test and evaluate the effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutout and gives alarm indication.

11.Optional hand switch controlled power output (increase or decrease) function.

Six output modes:

Cut	400W(Load 500Ω)
Blend 1	250W(Load 500Ω)
Blend 2	200W(Load 500Ω)
Spray Coa	120W(Load 500Ω)
Contact Coag	80W(Load 500Ω)
Standard bipolar Coag	100W(Load 500Ω)

Parameter comparison:

Model	CNME011105	CNME011117	CNME011117S	CNME011118	CNME011118V
Maximum Power	Monopolar:100W Bipolar:50W	Monopolar:400W Bipolar:70W	Monopolar:400W Bipolar:70W	Monopolar:300W Bipolar:100W	Monopolar:100W Bipolar:60W
Applicable Surgeries	Dermatology, Dentistry, Plastic surgery	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.	Endoscopic surgery, Gastroenterology surgery, Gynecology surgery, Urology surgery, Pediatrics surgery and etc.	Dermatology, Dentistry, Plastic surgery,pet open surgery
Working Mode	①Pure cut，②Blend cut，③Contact Coag，④Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray Coag，⑥Forced Coag，⑦Contact Coag，⑧Standard Bipolar Coag，⑨Auto Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Spray Coag，⑤Contact Coag，⑥Standard Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray coag，⑥Forced coag，⑦Soft coag，⑧Standard bipolar coag，⑨Precise coag，⑩Macro coag	①Pure Cut，②Blend Cut 1，③Blend Cut 2,④Spray Coag，⑤Forced Coag，⑥Bipolar Coag
Advantages	FDA Certification	Two pencils work simultaneously,Memory records features.	Applicable to all disciplines, Economical and versatile,Memory records features.	Vessel seal/Ligasure,Two pencils work simultaneously	Also suitable for pets,High cost performance
