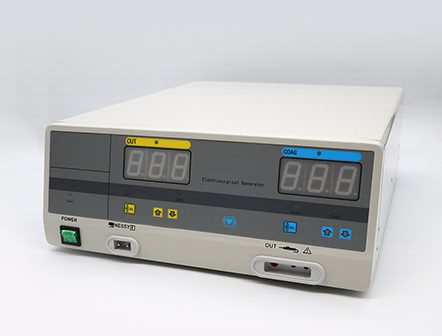

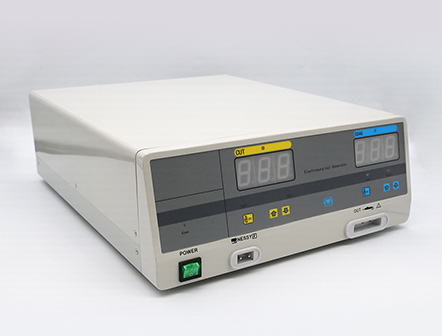

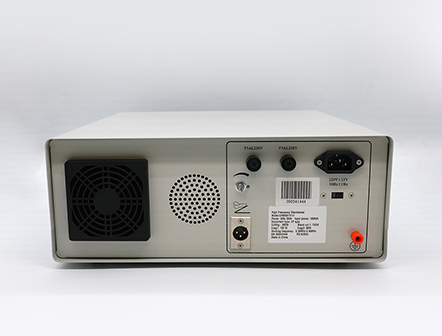

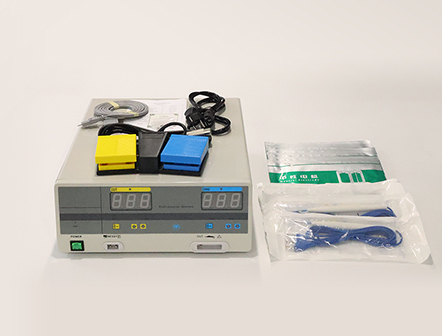

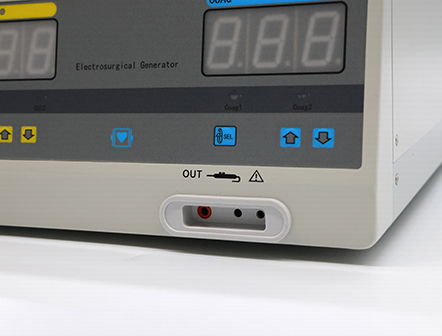

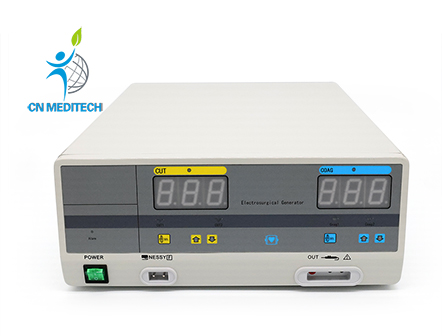

Portable 4 Working Modes Electrosurgical Unit Machine

Model:CNME011111

Application of use:

General Surgery;Gastroenterology Dermatology;
Vascular Surgery;Obstetrics and Gynecology Heart/Thoracic Surgery;ORL/ENT;
Minimally Invasive Surgery (MSI) Cerebral surgery Neurosurgery;
Orthopedics & Plastic Surgery, Trans Urethral Resection (TUR) and etc.

Electrosurgical unit machine features:

With memory function,this esu hospital machine remembers last used power setting.
With a neutral electrode contact quality inspection system that can detect plate contact area,the system real-time detection and effective assessment of the plate and the skin contact area, con-tact area if it is found down to a dangerous level,the system automatically cut off the out put and alarm.
Large high-definition digital display.
Host has an automatic monitoring and error show function.
Type of equipment:CF type.

Output Characteristics:

Working mode		Maximum Power(Watts)	Rated Load
Monopolar Cut	Cutting	200W	500Ω
Monopolar Cut	Blend	150W	500Ω
Monopolar Coag	Soft Coag	100W	500Ω
Monopolar Coag	Strong Coag	80W	500Ω

Technical parameter:

Working frequency	360-460 kHz
Atmospheric pressure range	86.0-106.0kpa
Power supply	220V(+22V), 50Hz(+1)
Rated power of equipment	880 VA+10%
Temp	5ºC~40ºC
Relative humidity range	<80
Power consumption	≤1000VA

Parameter comparison:

Model	CNME011105	CNME011111	CNME011117	CNME011117S	CNME011118V
Maximum Power	Monopolar:100W Bipolar:50W	Monopolar:200W	Monopolar:400W Bipolar:70W	Monopolar:400W Bipolar:70W	Monopolar:100W Bipolar:60W
Applicable Surgeries	Dermatology, Dentistry, Plastic surgery	General surgery	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.	Dermatology, Dentistry, Plastic surgery,pet open surgery
Working Mode	①Pure cut，②Blend cut，③Contact Coag，④Bipolar Coag	①Pure cut，②Blend cut，③Soft coag，④Strong coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray Coag，⑥Forced Coag，⑦Contact Coag，⑧Standard Bipolar Coag，⑨Auto Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Spray Coag，⑤Contact Coag，⑥Standard Bipolar Coag	①Pure Cut，②Blend Cut 1，③Blend Cut 2,④Spray Coag，⑤Forced Coag，⑥Bipolar Coag
Advantages	FDA Certification	Laboratory Demonstration Machine,True monopolar electrosurgical unit	Two pencils work simultaneously,Memory records features.	Applicable to all disciplines, Economical and versatile,Memory records features.	Also suitable for pets,High cost performance
