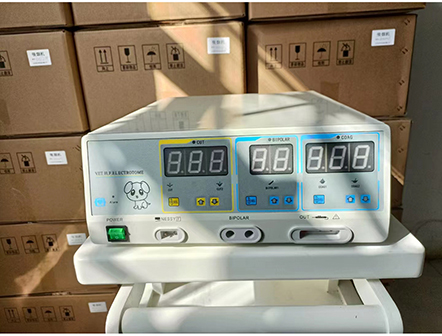

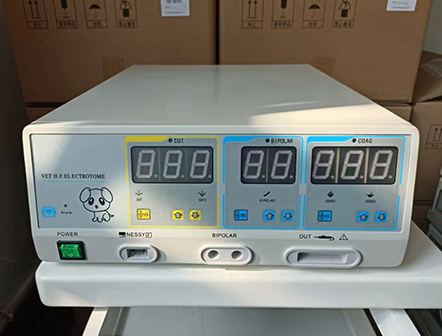

Veterinary Professional Electrocautery Unit High Frequency Electrotome for Pet Open Surgery

Model:CNME0111V1/CNME0111V2

Scope of application:

Applicable to pet open surgery.

Product advantage:

Unique design of anal conductive rod, no shaving and simple operation.
Accurate and efficient soft tissue cutting and coagulation control.
There was no edema, no fibrous contraction scar and little thermal injury after operation.

Product characteristics:

With memory function, the power setting value was used last time when the machine was turned on.
The neutral electrode contact quality detection circuit can detect the contact area of the electrode.
The host has the function of automatic monitoring and error prompting.
High clarity and large digital display.

Output Characteristics:

Maximum output power:200W
Output modes:

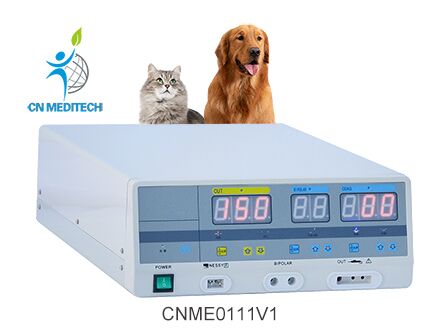

CNME0111V1:Cutting,Blend cut,Soft Coag,Strong Coag,Bipolar Coag.

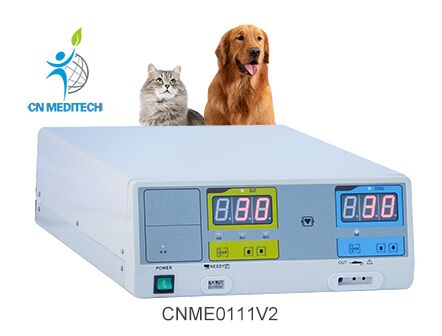

CNME0111V2:cutting (pure cut),mixed cutting,mixed cutting2,electrocoagulation 1.

Technical parameters:

Environmental temperature range: 5 ºC~40ºC
Relative humidity range: <80
Atmospheric pressure range: 86.0-106.0 kpa
Power supply: 220V (+22V), 50Hz (+1)
Working frequency: 360-460 kHz
Rated power of equipment: 880 VA+10%
Type of equipment: CF
The power consumption of the whole machine is less than 1000VA. (Cutting function 300)

Parameter comparison:

Model	CNME0111V1	CNME0111V2	CNME011105	CNME011117	CNME011117S
Maximum Power	Monopolar:200W Bipolar:50W	Monopolar:200W	Monopolar:100W Bipolar:50W	Monopolar:400W Bipolar:70W	Monopolar:400W Bipolar:70W
Applicable Surgeries	pet open surgery	pet open surgery	Dermatology, Dentistry, Plastic surgery	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.	General surgery, Endoscopic surgery,Thoracic surgery, Orthopedics, Obstetrics and gynecology, Urologic surgery, Cerebral surgery,Microsurgery, ENT surgery and etc.
Working Mode	①Pure cut，②Blend cut，③Soft Coag，④Strong Coag，⑤Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Soft coag	①Pure cut，②Blend cut，③Contact Coag，④Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Blend cut 3，⑤Spray Coag，⑥Forced Coag，⑦Contact Coag，⑧Standard Bipolar Coag，⑨Auto Bipolar Coag	①Pure cut，②Blend cut 1，③Blend cut 2，④Spray Coag，⑤Contact Coag，⑥Standard Bipolar Coag
Advantages	Standard with pet special conductive bar	Standard with pet special conductive bar	FDA Certification	Two pencils work simultaneously,Memory records features.	Applicable to all disciplines, Economical and versatile,Memory records features.
