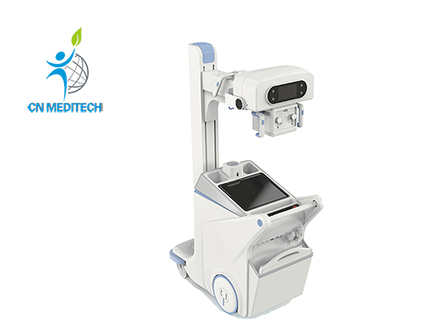

Digital Mobile X-ray Radiography System High Frequency X Ray Machine

Model:CNME020104


Features:

Mobile Radiography with Low Dose: Low dose exposure control mode:Effectively reduce radiation damage


Flexible Movement and Smooth Driving: Tiny body:58cm one-click locking and one-hand push 315° wide-angle tube stand movement Easy to operate and Long standby time: 19 inch LED touch screen Automatic SID measurement Support long-distance visual operation and voice guidance positioning Maximum 1200 times continuous exposures and 30km super battery endurance


Technical Datas:

Generator
Power
32kw(max 40kw)
KVp range
40-150kv
mA range
50-400mA
mAs range
1~630mAs
X-ray tube
Anode heat content
300KHu
Flat panel detector
X-ray sensitive
14*17 inch(ipx4 waterproof)
Physical specification
Column rotation range
±315°
Collimator rotation range along the vertical axis
±90°
Anode angle
12°
Telescopic arm length range
710~1240mm
SID
570~1800mm
