High Frequency Radiography Portable Digital X-Ray Machine
  • High Frequency Radiography Portable Digital X-Ray Machine
  • High Frequency Radiography Portable Digital X-Ray Machine
  • High Frequency Radiography Portable Digital X-Ray Machine
  • High Frequency Radiography Portable Digital X-Ray Machine
  • High Frequency Radiography Portable Digital X-Ray Machine
High Frequency Radiography Portable Digital X-Ray MachineHigh Frequency Radiography Portable Digital X-Ray MachineHigh Frequency Radiography Portable Digital X-Ray MachineHigh Frequency Radiography Portable Digital X-Ray MachineHigh Frequency Radiography Portable Digital X-Ray Machine

Get Quotes

Download Full Catalogue

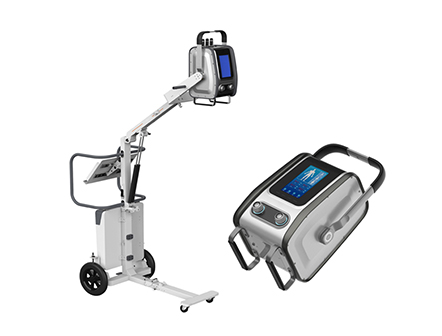

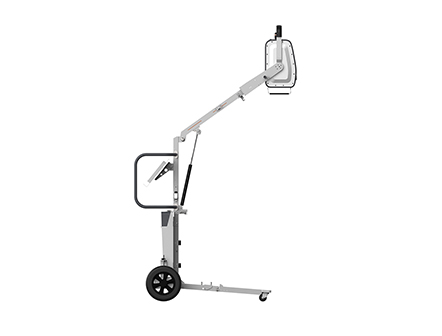

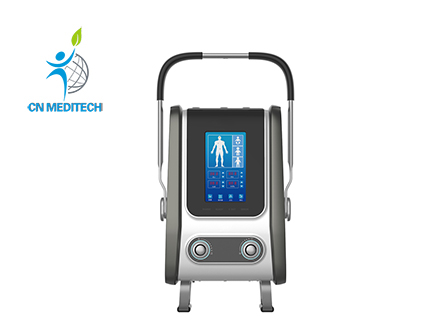

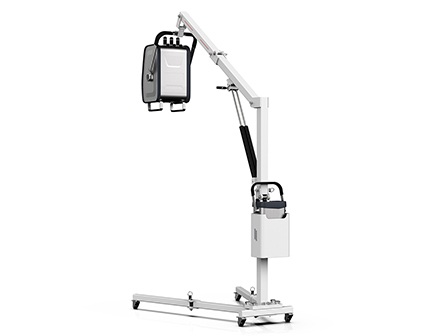

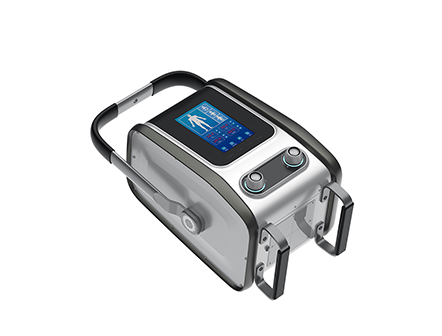

High Frequency Radiography Portable Digital X-Ray Machine

Model:CNME020108


Features:

1.5/8kw high-frequency generator.

2.8 inch LCD touch screen for easier operation with your fingers.

3.Wireless and remote exposure hand brake to reduce radiation.

4.Ultra-low radiation leakage ensure the operation safety.

5.Concise and efficient operation interface with prompt adjustment of exposure parameters and APR to improve operational efficiency.

6.Optional large-capacity and rechargeable battery can be able to support the outdoors and emergency use.

7.Core components all in one design which looks simple and generous. Strong metal handle design for easy carrying.

8.Available with optional trolley.


Specifications:

Power
5KW/8KW
Tube voltage range
40~100kV(5kw)~125kV(8kw)
Tube current range
3~125mA(5kw)~160mA(8kw)
Exposure time
3.2ms~10s
mAs range
0.1~160mAs(5kw)~250mAs(8kw)
Inverter frequency
100khz
Focus size
0.6-1.5mm(5kw)/0.6-2.8mm(8kw)
Tube heat capacity
40KHU/5KW,76KHU/8kw
Head size
310mm*266mm*465mm
Head weight
18KG
