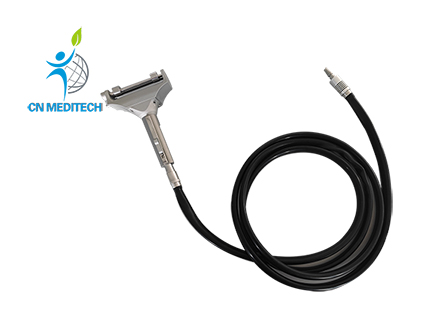

Surgical Air Dermatome Pneumatic Dermatome Skin Grafting Knife

Model:CNME-SGD2

Intended Use:

It is a device used for skin grafting in various thicknesses and widths.

Standard Components:

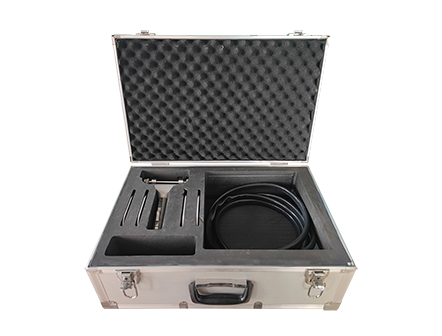

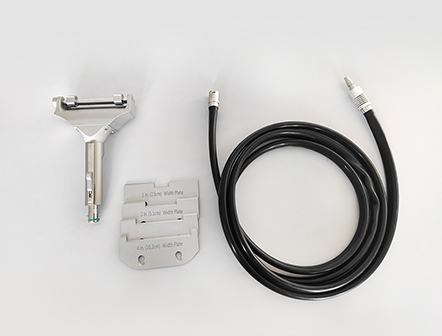

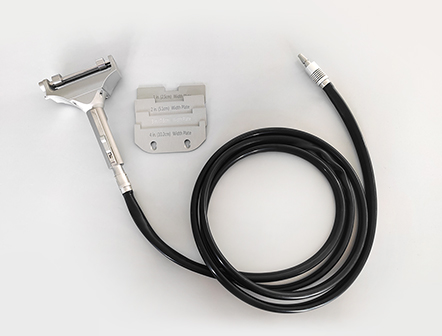

It consists of 1 Handpiece,1 Air Tube,4 Width Plates (1IN/2IN/3IN/4IN),1 Screwdriver,20 Disposable Dermatome Blades,1 Autoclave Case,1 Transport Case

Features:

Strong Power

Speed&speed cutting action,virtually effortless cutting even during excision of eschar.Recommend using pumped compressed dry nitrogen(purity 99.97%%) as the power source, if not available medical compressed air can be used.

Mechanized cutting

Compared with manual cutting,mechanized cutting that consistently produces clean,uniform grafts,increase surgery efficiency,reduce pain of patients

Precise Galibration

*Thickness: 0-0.75mm in 0.05mm increments.

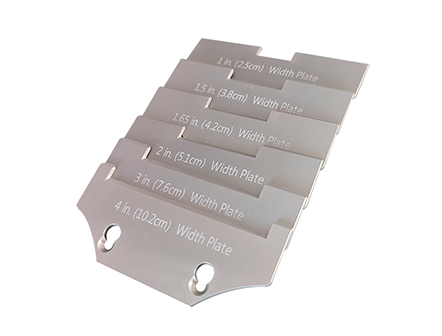

*Width: 1in(2.5cm),1.5in(3.8cm),1.65in(4.2cm),2in(5.1cm),3in(7.6cm),4in(10.2cm) for choice.

(Special size can be customized)

Easy Operation,Safe and Reliable

*Blade can be quickly and safely inserted.Select the proper width plate,and connect the handpiece to the air tube.

*Removable air tube design, easy to operate the handpiece.

*Handle with safe contact switch. start and stop at any time, reduce the risk of surgery.

Low Maintenance

*Smooth head design facilitates easy and thorough cleaning.No lubrication required.Avoid

accumulation of pollutants.

*Various sterilization methods are applicable,such as gravity displacement steam sterilization or low temperature plasma sterilization,etc

Specifications:

1.Skin Graft Thickness: 0-0.75 mm in 0.05 mm increment

2.Skin Graft Width: 2.5～10.2cm, 4 size width plates:2.5cm,5.1cm,7.6cm,10.2cm.

3.The blade has self-lubricating function and is easy to load and unload.

4.Imported pneumatic motor, superior high temperature resistance, adaptive speed: 4500-6500rpm; no loading speed:9000rpm, no jitter.

5.Hand held control, easy to operate;

6.Detachable air tube, easy to use, and can be steam sterilized. (the length is longer than 3M)

7.Handpiece weight: ≤0.7kg
