Automatic Digital Display Vertical Pressure Steam Sterilizer

Model:CNME060313

This sterilizer is a device that uses pressure saturated steam to quickly and reliably sterilize items. It is suitable for medical and health care, scientific research, agriculture and other units. It can sterilize medical equipment, dressings, glassware, solution culture medium, etc. It is also suitable for use as steaming equipment in plateau areas and for enterprises and institutions to produce high-quality drinking water. It can also be used as a high-temperature steam source equipment.

Specific applications in the laboratory

1. Sterilization of glassware: Commonly used glassware in the laboratory, such as test tubes, beakers, and culture dishes, need to undergo strict sterilization. Vertical high-pressure steam sterilizers can complete this task efficiently and quickly to ensure the accuracy of experimental results.

2. Sterilization of surgical instruments: In medical laboratories, the sterilization of surgical instruments is crucial. Vertical high-pressure steam sterilizers can kill microorganisms on instruments to ensure the safety of the surgical process.

3. Sterilization of dressings: Dressings are often used in experiments such as wound treatment and cell culture in laboratories. Vertical high-pressure steam sterilizers can sterilize dressings to prevent cross infection.

4. Sterilization of culture medium: Culture medium is an experimental material in a microbiology laboratory. Vertical high-pressure steam sterilizers can efficiently sterilize culture medium to ensure the success of microbial culture experiments.

Working principle

Vertical high-pressure steam sterilizers are designed based on the principle of moist heat to kill microorganisms. The sterilization principle is to use gravity displacement to make steam flow from top to bottom in the sterilizer, discharge cold air from the lower exhaust hole, and replace the discharged cold air with saturated steam. The latent heat released by steam is used to make the items reach sterilization conditions. This method can increase the water content of bacterial protein, making it easy to coagulate under heat, thereby accelerating the death process of microorganisms.

Characteristics:

1.Fully stainless steel structure

2.LED display of working status,touch type key

3.Auto discharge the cool air,and steam discharging automatically after sterilization

4.Automatically shut off with beep reminding after sterilization

5.Easy to operate,safe and reliable

6.With two stainless steel sterilizing basket

The vertical steam sterilizer adopts an advanced microcomputer automatic control system. Users can set sterilization parameters as needed to ensure that the sterilization process is accurate and controllable. The sterilization chamber is made of SUS304 or SUS316L stainless steel plate, which is not only corrosion-resistant, but also can maintain the sterilization effect for a long time.

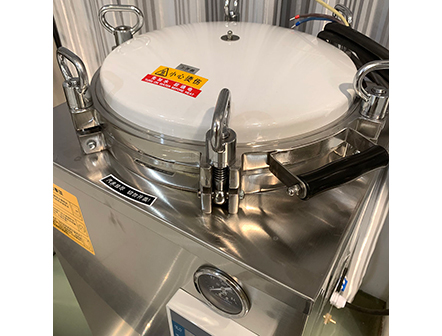

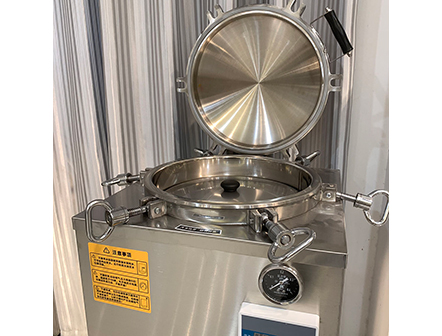

When using the CNMEDITECH vertical steam sterilizer, the user must first turn on the power switch, rotate the hand wheel to open the upper pot cover of the machine, and pour an appropriate amount of distilled water into the pot. When the water level light on the panel changes from a low water level red light to a constant green light, it means that the water level is appropriate. At this time, the user can put in the inner bucket or net basket, put the items to be sterilized in the pot, and then close the upper pot cover.

After the upper pot cover is closed, the door control light will light up green, indicating that the door control device is working properly. At this time, the user only needs to tighten the hand wheel slightly to ensure that the pot cover is tightly closed. Next, the microcomputer control system will automatically start the sterilization process, and the user does not need to perform complicated operations.

During the sterilization process, the CNMEDITECH vertical steam sterilizer has multiple safety protection functions, such as over-temperature protection, over-pressure protection, and low water level protection, to ensure the safety and reliability of the sterilization process. At the same time, the equipment is also equipped with a drying function, which can automatically dry the items after the sterilization is completed, further improving work efficiency.

In general, the CNMEDITECH vertical steam sterilizer has become an important tool in the field of medical disinfection due to its safety and convenience. Whether it is a clinical institution, a laboratory of a college or university, or a biological research unit, this equipment can be used to ensure the cleanliness and sterility of medical devices, dressings, glassware and other items, and provide patients with safer and more reliable medical services.

Technical Data:
