Foot Operation Medical Suction Machine Pedal Suction Apparatus

Model:CNME011018


Features:

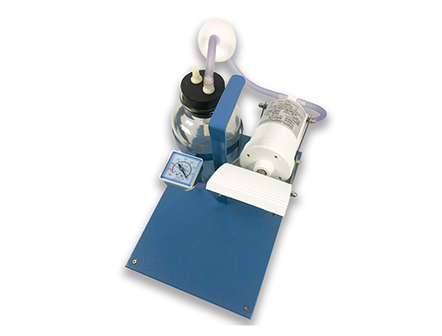

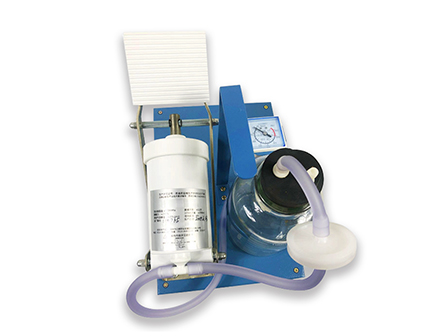

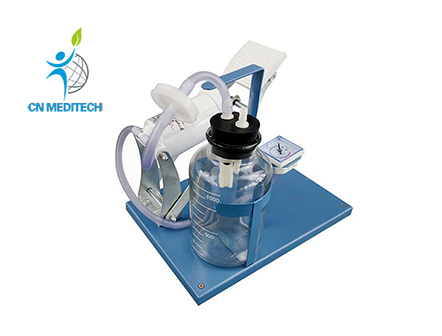

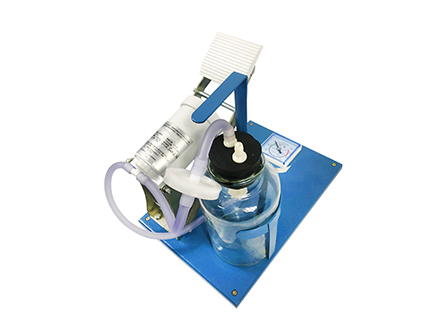

1.The foot pedal suction device consists of a bottom plate,a foot pedal negative pressure pump,a negative pressure indicator, and a collection container component.

2.Foot-pedal suction device can be used for emergency power failure in power-free areas and general areas.

3.This machine has safety device of overflow protector, safe and reliable.

4.The suction device has the characteristics of small volume, light weight, no power supply, easy to carry and safe and reliable to use.


Specifications:

Vacuum range
0.04MPa(300mmHg)~0.08MPa(600mmHg)
Max vacuum
0.08MPa(600mmHg)
The number of pedals that reach the ultimate negative pressure value
more than 12 times
The pedal force that reach the ultimate negative pressure value
245N
Maximum flow rate
20L/min
Storage bottle capacity
1000ml
Overall dimensions
34cm*22cm*26.5cm
Weight
4kg
Work environment
Temperature:+5℃~+35℃,
Relative humidity:≤80%(25℃)
Atmospheric pressure:86KPa~106KPa
