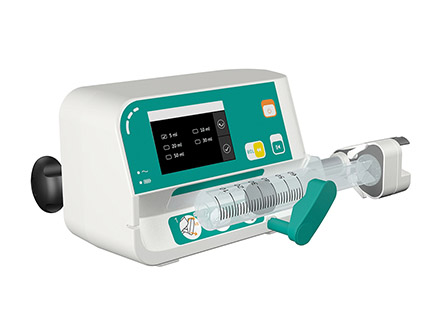

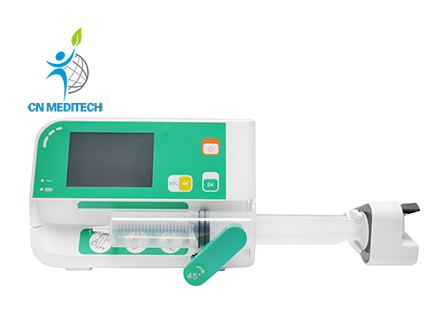

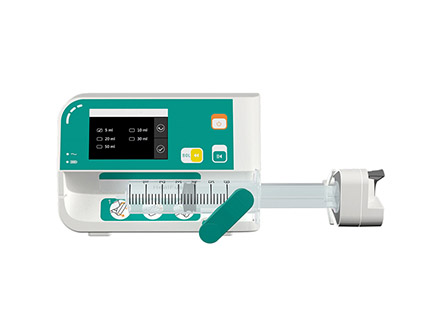

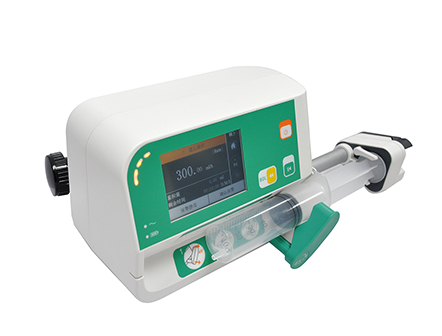

Model:CNME010512S
Features:
Extra precision Stepper Motor and Secondary Amplify Transmission System Provide Wider Flow Range and Higher Accuracy.
Double CPUs Design, Self-testing when Start-up.
Intuitive User Interface to Practical Clinical Use.
Fault Tree Analysis, Stable Software System.
Online Titration,Rapid Respond to New Parameters.
Anti-Bolus Function,Avoid Bolus after Occlusion Release.
Fast Start Function,Avoid Drug Delivery Delay.
Large Colorful Touchscreen for Easy Operation.
Optional Wifi Function to Connect with Central Station.
IPX5 Water Resistant.
Extensive Battery for over 15 hours injection.
Specifications:
Safety grade | Class I, type CF |
Waterproof level | IPX5 |
Size | L*H*T:<248*137*125(W*H*D/mm,With push-pull box without C-clamp) |
Display screen | 3.5-inch color LCD touch screen. Support touch screen input, easy to learn and easy to operate. |
Syringe rate range | 0.1～2000ml/h(5/6ml(0.1~150ml/h) 10ml(0.1~300ml/h) 20ml(0.1~600ml/h) 30ml(0.1~1000ml/h) 50/60ml(0.1~2000ml/h)) (the upper limit is different if the syringe is different)
|
Injection Rate Step Resolution | (0.1-99.99)ml/h,minimum increment:0.01ml/h
(100.0-999.9)ml/h,minimum increment:0.1ml/h
(1000-2000)ml/h,minimum increment:1ml/h |
Preset range | (0.1-9999.99)ml,minimum increment:0.01ml |
Injection mode | rate mode,preset time mode,time rate mode,dose calculation mode,first dose mode,gradient mode,intermittent mode,sequence mode,TIVA mode
|
Anti-Bolus | When the syringe line is blocked,the syringe pump automatically releases the line pressure |
Alarm information | Use battery, Door open, Occlusion,Almost done, Forge toperation, Infusion completion,Low Battery,Battery exhausted, malfunction etc.
|
Screen brightness adjustment | 1-9 levels. Alarm volume adjustment:1-5 levels |
Drug library | Support drug name selection,and the drug name can be displayed in real time after selection |
Nurse call function | When the syringe pump alarms,it outputs the nurse call signal to the outside through this interface |
