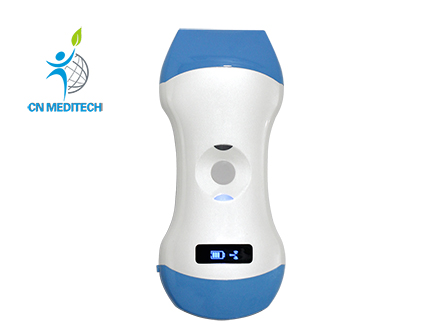

Model:CNME0102-W1
Features:
*Workable with Tablet PC or Smart Phone (iOS, Android, Windows)
*Built-in and replaceable battery
*Advanced digital imaging technology, clear image
*High cost-effective
*Wireless connectivity, easy to operate
*Small and light, easy to carry
*Applicable in hospital,emergency,clinic,outdoor and vet inspection
*Intelligent terminal platform,powerful expansion functions on application,storage
Specifications:
Scanning mode | Electronic array |
Probe Type | Consist by Convex and Linear, Convex with mode of Phased array scan |
Display mode | B,B/M, B+Color, B+PDI,B+PW |
Probe element | 96 |
Channel of RF circuit board | 24 |
Probe frequency and scan depth, head radius/width, scan angle(convex) | 1.Convex head 3.5MHz/5MHz,90/160/220/305mm.45mm.50°
2.Convex head by phased array(cardiac) scan mode: 3.5MHz/5MHz, 90/160/220/305mm, 45mm. 80°
3.Linear head 7.5MHz/10MHz,20/40/60/100mm, 40mm |
Image Adjust | BGain, TGC,DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
Cineplay | auto and manual, frames can set as 100/200/500/1000 |
Measure | Length, Area, Angle, heart rate, Obstetrics |
Image save | ipg, avi and DICOM format |
Image frame rate | 18 frames/second |
Battery working time | 3.5 hours(according to whether keep scan) |

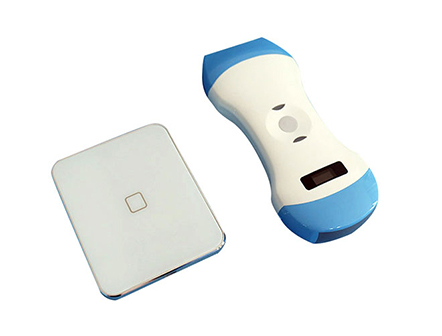

Battery charging | by wireless charging, 2 hours |
Dimension | 156*60*20mm |
Weight | 260g |
Wifi type | 802.11g/20MHz/5G/450Mbps |
Working system | Apple iOS and Android, Windows |
