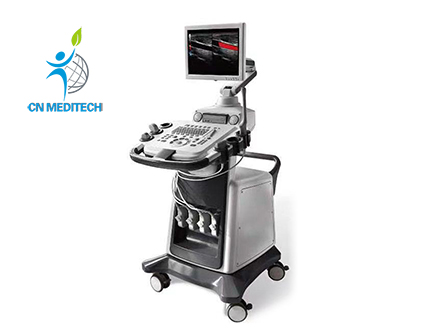

Medical Ultrasonography 4D Trolley Color Doppler Ultrasound Machine

Model:CNME0102C3


Clinical Applications:

Abdomen,Obstetrics,Gynecology,Urology,Cardiology,Small Parts,Vascular.


Features:

15 inch LED monitor

Display modes: B、 B/B、4B、B+M、CFM、B+CFM、PDI、PW、THI

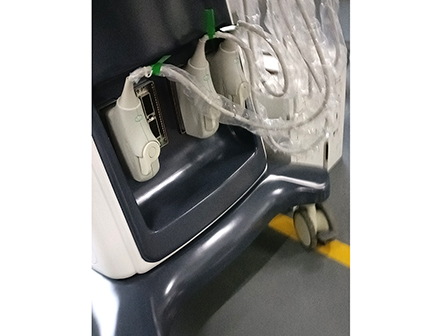

4 probe sockets

Output:RS232、DICOM、USB、LINE

Probe elements:128

Standard with 3.5Mhz convex probe

Optional:6.5Mhz Transvaginal;7.5 Mhz Linear/ 3.5Mhz Micro-convex probe


Specifications:

Probe socket
4
Probe frequency
2.0MHz ~ 10.0MHz, 8 levels of frequency conversion
Types of probes
large convex, slightly convex, linear array
Sound power
16-level output sound power adjustable
Grayscale
256 grayscale
Peripheral interface
DICOM interface (network interface), USB interface, RS232 interface
Optional
laser printer, video image printer
Signal Processing and Doppler
Dynamic filtering and quadrature demodulation
Gain adjustment
8-stage TGC
The pulse repetition frequency can be adjusted separately
CFM PWD
