Model:CNME01S25
Description:

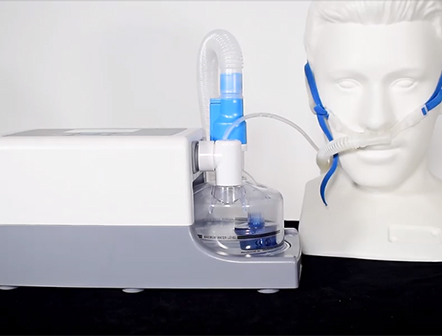

During the patient's respiratory treatment, the oxygen therapy system provides a higher flow rate than the conventional oxygen therapy through the non-sealing nasal cannula,tracheostomy interface and mask, and inhales the mixed gas with adjustable oxygen concentration and controllable humidity to the patient, so as to achieve better air-oxygen management and improve.
Specifications:
| Humidity output | > 33 mg/L at 37 ºC > 12 mg/L at 34 ºC > 12 mg/L at 31 ºC |
| Temperature Setting | 31, 34 and 37 ºC |
| Flow Range | Adult 10 to 80 LPM Pediatrics 2 to 25 LPM |
| Flow Setting Resolution | 1 LPM ( < 25 LPM range) and 5 LPM for (25 to 70 LPM range |
| Flow Accuracy | 0.5 LPM |
| Oxygen Flow | Maximum 80 LPM |
| FiO2 Range | 21%~100% |
| FiO2 Monitor Accuracy | 3% |
| Power | 50-60 Hz, 100-115V 1.6A (2.2A Max), 220-240 1.2A (3.2A Max) |
| Dimension | 273 mm*170mm*175 mm |
| Weight | < 2.1Kg |
| Connectivity | Wi-Fi (Optional) |
| SpO2 Monitor | Optional |
